Views: 0 Author: Site Editor Publish Time: 2026-06-30 Origin: Site
The safety, efficacy, and regulatory compliance of a finished catheter device hinge entirely on the precision of its atraumatic tip. Even microscopic deviations in the thermal forming process lead to tissue trauma, device failure, or batch rejection. Medical device manufacturers frequently struggle with inconsistent yields. Thermal degradation of sensitive polymers and flash formation during high-volume production increase scrap rates and compliance risks. You cannot afford process variations when patient outcomes rely on flawless device navigation through complex vascular pathways.
Optimizing production and selecting the right equipment requires a rigorous evaluation of the core thermodynamic cycle. This guide breaks down the critical variables necessary to stabilize the tipping process and scale manufacturing. You will learn how to balance heating modalities, select appropriate tooling metallurgy, and implement automation strategies. Mastering these elements allows you to eliminate operator-induced variability and maintain strict adherence to validated process windows.
Precise catheter tip forming temperature control is the primary driver for achieving repeatable atraumatic profiles without compromising the polymer's tensile strength.
Tooling material selection, heat-treating processes, and proprietary die coatings directly dictate heat transfer rates, cycle times, and the prevention of polymer adhesion.
Transitioning from manual processes to an automatic catheter tipping machine significantly reduces operator-induced variability, standardizes cycle times, and ensures strict adherence to validated process windows.
Evaluating tipping equipment requires balancing thermal response times (e.g., RF induction vs. resistive heating) against the specific melt flow index, thermal degradation limits of the extruded tubing, and the potential need for secondary operations like flaring or bonding.

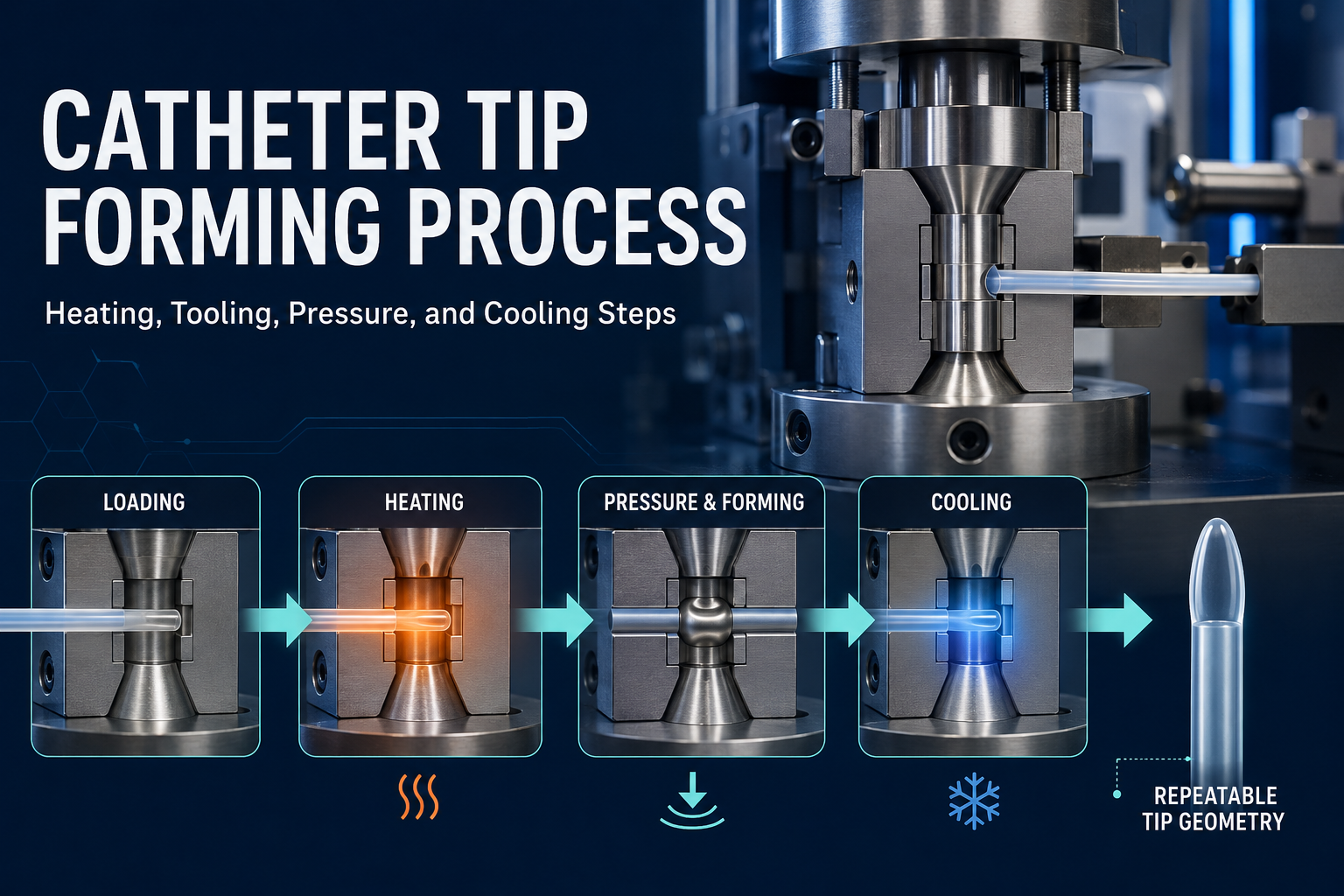

Understanding how catheter tipping machines work begins with analyzing the core thermodynamic cycle. The process initiates with the precise insertion of polymer tubing into a heated mold, commonly referred to as a die. Thermal energy transfers from the die into the polymer matrix. This raises the material temperature past its glass transition state and into its melt phase. Once the polymer reaches the optimal melt viscosity, mechanical force reshapes the material to match the internal geometry of the die cavity. Finally, a rapid cooling cycle extracts the heat, locking in the final geometric profile before the device is removed.
The interaction between polymer science and mechanical force requires absolute precision. Thermoplastic elastomers like Pebax, polyurethane, and nylon exhibit distinct melt flow indices. You must control the thermal input to prevent the polymer chains from degrading. As the material flows into the die cavity, it faces resistance. A carefully calibrated internal support, known as a mandrel, prevents the inner diameter (ID) from collapsing under the applied axial force. The synchronization of heat, pressure, and internal support ensures the material flows uniformly without compromising the structural integrity of the catheter shaft. We see many production lines fail because engineers treat the polymer as a static material rather than a dynamic fluid during the melt phase.
Establishing baseline requirements for a compliant tip dictates your entire manufacturing strategy. The primary goal of medical catheter tip forming is achieving atraumatic profile consistency. The tip must navigate delicate vascular structures without causing endothelial damage. This requires an absolute absence of flash, burrs, or sharp transitions. You must also guarantee ID patency. Any restriction within the lumen impedes the delivery of guidewires, stents, or contrast media. Furthermore, the thermal cycle must preserve the baseline mechanical properties of the polymer, ensuring the tip does not become brittle or overly soft.
Evaluating the success of your operation requires balancing cycle speed with process capability. Throughput metrics determine production efficiency, but they must never supersede quality. You should frame your evaluation lens around the Process Capability Index (Cpk). A high Cpk indicates that your tipping process consistently produces parts well within the upper and lower specification limits. High-yield, defect-free production relies on maintaining a Cpk of 1.33 or higher. Achieving this statistical stability demands equipment capable of executing repeatable thermal and mechanical cycles across thousands of iterations.
Defect Type | Clinical Impact | Primary Manufacturing Root Cause |
|---|---|---|
Flash / Burrs | Vessel trauma, endothelial scraping during navigation. | Excessive insertion pressure or worn die cavity sealing edges. |
Collapsed Lumen (ID) | Inability to pass guidewires or deliver therapeutic agents. | Undersized mandrel or premature mandrel extraction before cooling. |
Polymer Degradation | Tip fracture or separation inside the patient. | Thermal overshoot or excessive dwell time in the heating zone. |
Asymmetrical Wall | Unpredictable tracking and whipping during rotation. | Off-center axial alignment during the initial loading phase. |
The first stage establishes the physical foundation for the entire forming cycle. Precise mandrel insertion remains non-negotiable for maintaining ID patency during the melt phase. The mandrel acts as an internal scaffold. It prevents the molten polymer from collapsing inward when subjected to axial insertion pressure. You must select mandrel materials that resist adhesion to the melted polymer. Proper mandrel sizing ensures the final lumen diameter meets strict clinical tolerances.
Alignment tolerances and axial positioning directly impact material distribution. If the tubing enters the die cavity off-center, the resulting tip exhibits asymmetrical wall thickness. This asymmetry causes uneven flexibility, leading to unpredictable navigation during clinical use. Operators or automated systems must secure the tubing perfectly parallel to the die axis. You must also control the initial insertion depth. Incorrect positioning prior to the heating phase causes the material to pool prematurely, creating flash or incomplete tip profiles.
Verify the outer diameter of the raw extruded tubing against the die entrance specifications.
Insert the PTFE-coated mandrel to the exact depth required to support the transition zone.
Clamp the tubing in the carriage assembly, ensuring zero angular deviation from the die axis.
Advance the carriage to the pre-heat position, stopping exactly at the programmed standoff distance.
Thermal energy application dictates the flow characteristics of the polymer. You must evaluate the primary heating modalities based on your production requirements. Radio Frequency (RF) induction heating provides rapid, localized thermal energy. An induction coil generates an alternating magnetic field, heating specialized aluminum dies to over 285°F within two to five seconds. This rapid response minimizes the time the polymer spends at elevated temperatures, reducing degradation risks. Conversely, traditional thermal or resistive heating utilizes electrical cartridges embedded in brass or steel dies. While slower to heat and cool, resistive systems offer excellent thermal stability for continuous, high-volume runs of less sensitive polymers.
Preventing polymer degradation, burning, or incomplete melting relies heavily on closed-loop temperature feedback. Advanced PID controllers continuously monitor die temperatures via embedded thermocouples. The controller adjusts power output in milliseconds to maintain the exact setpoint. This eliminates thermal overshoot. If the temperature spikes, the polymer burns or becomes overly fluid, resulting in flash. If the temperature drops, the material will not fully melt, leading to high insertion resistance and short shots. Strict thermal governance ensures the polymer reaches its ideal melt flow index every cycle.
Once the polymer reaches its melt phase, mechanical force takes over. The application of controlled axial force, or feed rate, drives the melted polymer precisely into the die cavity. You cannot rely on arbitrary pressure. The feed rate must match the volumetric displacement of the die cavity. Servo-driven linear actuators provide superior control compared to pneumatic cylinders. Servos allow you to program multi-step insertion profiles. You advance the tubing quickly during the initial approach, then slow the feed rate as the material begins to flow into the complex geometries of the tip.
Finding the delicate balance between insertion pressure and melt viscosity prevents major defects. Over-pressurization forces the molten material outside the intended cavity boundaries, creating flash. Flash requires secondary trimming operations, increasing labor costs and contamination risks. Under-pressurization results in short shots or incomplete fills. The material fails to reach the apex of the die, leaving a blunt or malformed tip. You must map the viscosity curve of your specific polymer blend and program the insertion pressure to match the material's natural flow resistance.
The cooling phase locks in the polymer morphology and dictates the final cycle time. Rapid thermal extraction methods pull heat away from the die and the polymer as quickly as possible. Forced air cooling utilizes high-velocity compressed air directed at the external surface of the die. This method is simple and cost-effective but lacks the speed required for high-throughput operations. Chilled water jackets provide superior thermal extraction. Cold water circulates through channels surrounding the die, rapidly dropping the temperature and solidifying the polymer in seconds.
Controlled cooling rates do more than just speed up production. They prevent post-molding shrinkage and internal stress accumulation. If you cool the polymer too quickly, you induce brittle characteristics. If you cool it too slowly, the material adheres to the die surface. A properly calibrated cooling cycle ensures a clean release from the cavity. The polymer shrinks slightly away from the die walls, allowing the extraction mechanism to remove the finished catheter without stretching or deforming the newly formed tip.
The performance of your tipping process relies entirely on the metallurgical properties of your dies. Thermal conductivity and durability requirements dictate material selection. You must choose high-quality alloys tailored to your specific heating modality. RF induction systems require specialized aluminum alloys. Aluminum responds rapidly to magnetic fields, allowing for instantaneous heating and cooling cycles. Resistive heating systems benefit from brass or hardened stainless steel. Brass offers excellent thermal mass and stability, while stainless steel provides superior wear resistance for abrasive polymer blends.
High-volume thermal cycling subjects tooling to extreme stress. The continuous expansion and contraction causes dimensional warping over time. Heat-treating tooling alloys mitigates this risk. Proper heat treatment stabilizes the crystalline structure of the metal, ensuring the internal cavity dimensions remain static across hundreds of thousands of cycles. Furthermore, surface treatments and lubricious coatings prevent polymer adhesion. Applying PTFE or proprietary nickel plating to the internal cavity reduces friction. This prevents stringing—a defect where thin strands of polymer pull away from the tip during extraction.
Die Material | Heating Modality | Thermal Conductivity | Wear Resistance |
|---|---|---|---|
Specialized Aluminum | RF Induction | Very High | Low (Requires frequent inspection) |
Brass Alloys | Resistive / Thermal | High | Medium |
Hardened Stainless Steel | Resistive / Thermal | Moderate | Very High (Ideal for abrasive fills) |
The internal cavity engineering determines the clinical functionality of the device. You must design die geometries to achieve specific tip profiles. Tapered tips facilitate smooth vessel entry. Bullet tips provide a balance of trackability and dilation. Rounded tips minimize tissue trauma in tortuous pathways. Custom multi-lumen transitions require highly complex die engineering to ensure all internal channels remain patent while the external profile tapers. The die must account for the volumetric displacement of the melted polymer, ensuring seamless transitions between different durometer segments.
Tooling wear directly impacts process capability. Even microscopic degradation of the die cavity pushes the final product out of specification. You must implement rigorous lifecycle management protocols in high-volume, cleanroom manufacturing environments. Establish strict maintenance intervals based on cycle counts, not just calendar days. Inspect dies under high magnification for signs of coating degradation, micro-scratches, or polymer buildup. Implement ultrasonic cleaning procedures to remove microscopic residue without damaging the internal geometry. Proactive tooling management prevents unexpected downtime and ensures continuous compliance.
Scaling production requires eliminating variables. Manual tipping processes rely heavily on operator skill. Operators must manually load mandrels, align tubing, and initiate the thermal cycle. This human element introduces inconsistencies in axial alignment, insertion speed, and dwell times. An automated platform mitigates operator dependency. Automated systems utilize robotic pick-and-place mechanisms to handle mandrel loading and tubing insertion with sub-millimeter accuracy. Servo motors execute the insertion profiles with absolute repeatability, while programmable logic controllers manage the thermal cycling down to the millisecond.
Automation also enhances quality assurance. Integrating automated vision inspection systems allows for real-time defect detection. High-resolution cameras capture images of every formed tip immediately after extraction. Advanced software algorithms analyze the geometric profile, checking for flash, asymmetry, and proper taper length. Inline sorting mechanisms automatically reject non-compliant parts. This guarantees 100% quality verification without slowing down the production line. By removing the human element from both the forming and inspection phases, you drastically improve your overall yield and reduce compliance risks.
When evaluating equipment, you must map machine features directly to production outcomes. Avoid purchasing based on theoretical specifications. Focus on how specific engineering capabilities solve real-world manufacturing challenges on the shop floor.
Equipment Feature | Technical Function | Production Outcome |
|---|---|---|
Multi-zone temperature control | Isolates thermal energy to specific die segments. | Enables processing of complex, multi-durometer extrusions without thermal damage to softer segments. |
Servo-driven insertion profiles | Provides programmable, variable-speed axial force. | Delivers exact control over material flow, eliminating flash and ensuring consistent overall tip length. |
Modular tooling capabilities | Allows rapid swapping of die and heating assemblies. | Allows integration of secondary operations like bonding, flaring, and hole forming on a single platform. |
Data logging and SCADA integration | Captures critical process variables for every cycle. | Facilitates automated batch reporting and simplifies FDA CFR 21 Part 820 compliance audits. |
Even with advanced equipment, process deviations occur. You must quickly diagnose and resolve forming defects to minimize scrap. Flash formation remains the most common issue. Flash typically occurs when molten polymer escapes the die cavity. This is usually caused by excessive insertion pressure, oversized raw tubing, or worn tooling geometries that no longer seal properly. To resolve flash, first verify the tubing outer diameter against your specifications. If the tubing is correct, incrementally reduce the servo feed rate or insertion pressure until the flash disappears.
Stringing or sticking presents another significant challenge. When the catheter is extracted, thin strands of polymer stretch from the tip. This defect is often the result of inadequate cooling times. If the polymer remains above its glass transition temperature during extraction, it deforms. Excessive melt temperatures or degraded die coatings also contribute to sticking. Pinholes or voids within the tip structure usually stem from moisture trapped in the hygroscopic resin prior to extrusion. Alternatively, voids result from air entrapment during the forming phase. Adjusting the insertion speed allows trapped air to vent properly through the die.
Preventing defects requires a proactive approach to process development. You must establish robust operating windows using Design of Experiments (DoE) before scaling production. A fractional factorial DoE allows you to test multiple variables simultaneously. You map the interactions between temperature, insertion speed, cooling time, and pressure. This statistical approach identifies the optimal parameter settings that yield the highest Cpk. Operating within the center of this validated window ensures that minor environmental fluctuations do not push your process out of specification.
Regulatory compliance demands rigorous equipment validation. You must execute Installation Qualification (IQ), Operational Qualification (OQ), and Performance Qualification (PQ) protocols. IQ verifies that the equipment is installed correctly and meets electrical and safety standards. OQ tests the equipment across the extremes of the operating window to ensure it functions as designed. PQ demonstrates that the process consistently produces parts meeting all quality specifications under normal manufacturing conditions. Completing these validation steps ensures your tipping process meets ISO 13485 standards and satisfies FDA requirements for medical device manufacturing.
Define the upper and lower limits for temperature, pressure, and dwell time based on the polymer data sheet.
Run a 16-run fractional factorial DoE to identify the primary main effects and two-way interactions.
Analyze the resulting tip geometries under a vision system to calculate the Cpk for each run.
Lock the optimal parameters into the machine's PLC and restrict operator access to prevent unauthorized changes.
Execute a 300-piece PQ run using three different lots of extruded tubing to verify long-term process stability.
Execute a fractional factorial DoE on your current thermal profiles to identify the exact parameters causing flash or short shots.
Audit your die maintenance logs and replace any tooling showing degraded lubricious coatings or micro-scratches.
Request a proof-of-concept run from equipment vendors using your specific multi-durometer extrusions before finalizing any capital expenditure.
Upgrade to servo-driven insertion actuators if your pneumatic systems fail to maintain consistent feed rates during the melt phase.
A: The ideal temperature range depends entirely on the polymer's melt flow index. Thermoplastic elastomers like Pebax typically require temperatures between 140°C and 220°C. You must calibrate the temperature to exceed the glass transition point without reaching the thermal degradation threshold of the specific material blend.
A: Machines process multi-durometer tubing by utilizing multi-zone temperature control. This allows the equipment to apply precise thermal energy to the stiffer segments for melting, while shielding the softer, more sensitive segments from excessive heat. Servo-driven insertion ensures the materials blend seamlessly within the die.
A: Radio Frequency (RF) induction heating provides exceptionally rapid thermal response times. It heats aluminum dies to target temperatures in under five seconds and cools down just as quickly. This rapid cycling minimizes polymer degradation risks and significantly increases production throughput compared to slower resistive heating methods.
A: Eliminating flash requires balancing melt viscosity with mechanical force. You must lower the insertion pressure or slow the servo feed rate to prevent over-pressurizing the die cavity. Additionally, ensure your raw tubing dimensions are strictly controlled and verify that the die cavity has not suffered from wear.
A: Yes. Advanced modular tipping platforms allow manufacturers to swap tooling and heating assemblies. This modularity enables a single machine base to execute tip forming, thermal bonding of balloons or shafts, flaring, and even hole forming, reducing the need for multiple dedicated equipment lines.
A: You should upgrade to automation when operator-induced variability causes unacceptable scrap rates, or when production volume exceeds manual capacity. Automation is also critical when processing highly sensitive polymers that require sub-millimeter insertion accuracy and millisecond thermal control that human operators cannot consistently replicate.
