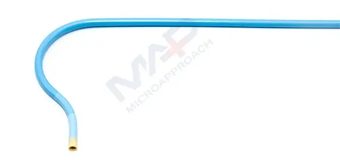

A guiding catheter is a fundamental tool in modern interventional cardiology and vascular therapy. In simple terms, it is a hollow, flexible tube that acts as a “bridge” or “highway” between the point of entry on the patient’s skin and the target vessel deep inside the body. Through this pathway, physicians introduce and exchange a variety of interventional and diagnostic devices—such as guidewires, balloon catheters, stents, and imaging tools—without repeatedly puncturing the vessel wall.
By providing a stable, torque-responsive channel, guiding catheters allow clinicians to navigate complex vessel networks safely and efficiently. They support precise device positioning and minimize the risk of vessel trauma, thus improving procedural success rates and reducing patient recovery time. Understanding the mechanics, evolution, and clinical uses of guiding catheters is essential for any practitioner involved in catheter based interventions.
The guiding catheter as we know it today is the result of decades of innovation. Its evolution can be traced through several key milestones:
Rigid Early Catheters (1970s–1980s):
The first catheters were made of stiff, non compliant plastics.
They provided basic luminal access but often caused vessel injury and offered poor navigability.
Introduction of Polymer Liners (Late 1980s–1990s):
The addition of PTFE (polytetrafluoroethylene) liners dramatically reduced friction.
Devices could pass more smoothly, reducing procedure times and complications.
Braided and Coiled Reinforcement (1990s–2000s):
Flat wire braiding or coiled stainless steel reinforcements improved torque transmission.
Catheters could be steered around tight bends and provided better backup support.
Pre shaped Curves and Radiopaque Markers (2000s–Present):
Manufacturers began offering pre formed curves tailored to coronary ostia and peripheral vessels.
Radiopaque markers embedded in the shaft allowed live X ray visualization during navigation.
Advanced Composite Materials (2010s–Present):
New polymers balanced flexibility with strength, creating thinner walled catheters that maintain support.
Improved hemostatic valves and strain relief hubs enhanced safety and ease of use.
Today’s guiding catheters combine decades of incremental improvements into a sophisticated device that reliably supports complex, minimally invasive procedures.
Modern guiding catheters are engineered with multiple features that optimize performance and safety. Key design elements include:
Flat-wire Braiding: Thin metal wires woven into the catheter wall provide torque control. When the operator rotates the hub, that rotation transfers all the way to the tip. This precise responsiveness is crucial for navigating tortuous or calcified vessels.
PTFE Liner: Polytetrafluoroethylene is an ultra low friction polymer lining the interior. It allows guidewires, balloons, and stents to slide in and out with minimal resistance, reducing the need for excessive force.
One-Piece Hub: A single molded polymer hub eliminates seams or joints, reducing leak paths for blood or contrast media.
Strain Relief: The area where the metal braid meets the hub is reinforced to prevent kinking under torque or bending forces, ensuring reliability throughout the case.
The distal tip is rounded and made of a softer polymer blend to minimize endothelial trauma. An atraumatic tip reduces the risk of vessel dissection or perforation during initial engagement and manipulation.
Strategically placed markers along the shaft and at the tip are made from barium or platinum iridium. Under fluoroscopy, these markers provide real time feedback on catheter position, allowing the clinician to navigate safely.
As transradial access (via the wrist) has grown in popularity, catheter manufacturers have developed specific pre shaped curves—such as Judkins left/right, Amplatz, and multipurpose configurations—optimized for radial anatomy. These curves facilitate rapid engagement of coronary ostia and reduce procedure time.
Guiding catheters serve two primary purposes: to introduce devices and to provide backup support during device delivery. Typical applications include:
Diagnostic Coronary Angiography: Injection of contrast dye through the guiding catheter visualizes coronary artery anatomy, helping to identify stenoses or blockages.
Percutaneous Coronary Intervention (PCI):
Balloon Angioplasty: The catheter provides the rail for advancing an inflatable balloon across a narrowed lesion.
Stent Deployment: Drug eluting or bare metal stents are delivered and expanded within the artery to maintain patency.
Chronic Total Occlusion (CTO) Procedures: Specialized catheter shapes and enhanced backup support help cross completely occluded segments using microcatheters and dedicated wires.
Peripheral Arterial Disease (PAD): Treating iliac, femoral, popliteal, or tibial artery lesions with balloons and stents to restore blood flow in the legs.
Renal Artery Stenting: Guiding catheters enable treatment of renal artery stenosis, a cause of hypertension and chronic kidney disease.
Mesenteric Angioplasty: Addressing mesenteric ischemia by placing stents in the superior or inferior mesenteric arteries.
Transcatheter Aortic Valve Replacement (TAVR): Guiding catheters cross the aortic valve and allow deployment of a bioprosthetic valve under fluoroscopic guidance.
Neurovascular Thrombectomy: In acute ischemic stroke, catheters navigate the carotid and cerebral vessels to remove clots and restore perfusion.
Selecting the right guiding catheter model depends on vessel size, lesion complexity, and access route. At MicroApproach, we offer two primary series:
Series | Model | Fr (OD) | ID (mm) | Length (cm) | Use Case |
XB Series | XB3.0 6 100 | 6 | 1.80 | 100 | Standard coronary interventions |
XB3.5 6 100 | 6 | 1.80 | 100 | Enhanced backup support | |
XB4.0 6 100 | 6 | 1.80 | 100 | CTO & complex lesion navigation | |
XB4.5 6 100 | 6 | 1.80 | 100 | Maximum support in tortuous vessels | |
MP Series | MPA1 8 90 | 8 | 2.16 | 90 | Large lumen for peripheral access |
MPD 6 100 | 6 | 1.80 | 100 | Multi purpose coronary & peripheral |
French Size (Fr): Corresponds to the outer diameter in millimeters (1 Fr = 0.33 mm). Larger Fr sizes support bigger devices but require a larger arterial puncture.
Inner Diameter (ID): Must accommodate the specific guidewire or tool intended for use.
Length: Standard 100 cm is ideal for most coronary procedures. Shorter 90 cm lengths may be sufficient for radial access or select peripheral cases.
A typical percutaneous procedure using a guiding catheter follows these steps:
Vascular Access:
The operator punctures the radial or femoral artery under ultrasound guidance.
A short introducer sheath is placed to maintain hemostasis.
Guidewire Advancement:
A soft-tip guidewire is navigated through the introducer into the target vessel under fluoroscopic visualization.
Guiding Catheter Introduction:
Over the guidewire, the guiding catheter—pre loaded with a dilator if needed—is advanced to the coronary ostium or peripheral target.
Device Exchanges:
The dilator and guidewire are removed, leaving the guiding catheter in place.
Interventional tools (balloons, stents, imaging catheters) are passed through the catheter lumen to the lesion.
Therapeutic Maneuvers:
Balloon inflation, stent deployment, aspiration, or other interventions are performed.
Final Angiography & Removal:
Repeat contrast injections verify treatment success.
All devices and the guiding catheter are removed, and hemostasis is achieved at the access site.
Enhanced Procedural Efficiency: Smooth device delivery and precise torque control shorten procedure times.
Stable Backup Support: Braided shafts resist collapse, supporting challenging lesion crossings.
Reduced Vessel Trauma: Atraumatic tips and PTFE liners minimize endothelial injury.
Broad Compatibility: Works with standard guidewires and interventional devices to streamline inventory.
Proper Sizing: Oversized catheters can injure vessels; undersized catheters may lack sufficient support.
Atraumatic Technique: Gentle manipulation and avoidance of forceful advancement prevent dissection or perforation.
Hemostasis Management: Secure hemostatic valves and careful sheath removal reduce bleeding risk.
Imaging Guidance: Continuous fluoroscopic monitoring ensures accurate catheter placement and device deployment.
A guiding catheter is much more than a simple tube. It is the cornerstone of catheter based interventions, enabling safe, efficient, and precise treatment of cardiovascular and peripheral vascular disease. From its early days as a rigid plastic conduit to today’s advanced composite designs, the guiding catheter has evolved to meet the demands of increasingly complex procedures.
At Shenzhen MicroApproach Medical Technology Co., Ltd., our guiding catheters bring together state of the art materials, proven design features, and rigorous quality control to support clinicians around the world. By choosing the right catheter shape, size, and configuration, practitioners can maximize procedural success, minimize complications, and improve patient outcomes.
Whether you are performing routine coronary angiography, tackling chronic total occlusions, or delivering peripheral stents, our guiding catheter portfolio offers the performance and reliability you need.
Contact MicroApproach today to request product samples, clinical data, or expert guidance tailored to your procedural needs.
