Hydrophilic Coating Surgical Peripheral Micro Catheter

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

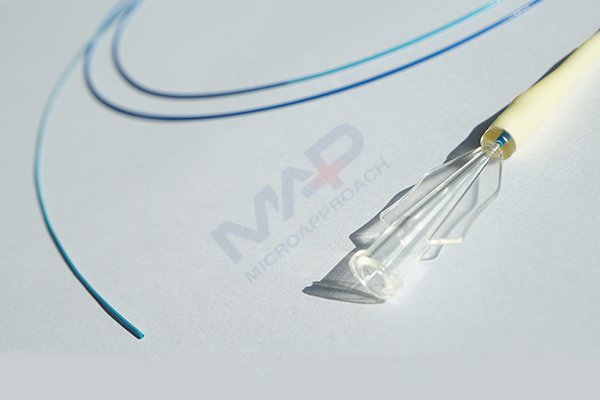

The Micro Catheter is a Micro Catheter with a flexible distal region. A hydrophilic coating is applied to the distal outer surface. A radiopaque marker is located proximal to the Micro Catheter tip to facilitate fluoroscopic visualization.
Availability:
Quantity:

Product Description

Application

The Micro Catheter is a Micro Catheter with a flexible distal region. A hydrophilic coating is applied to the distal outer surface. A radiopaque marker is located proximal to the Micro Catheter tip to facilitate fluoroscopic visualization. The proximal end of the Micro Catheter incorporates a standard luer adapter for attachment of accessories. It includes a tip straightener.

Microcatheter is used to inject diagnostic agents (such as contrast agents), therapeutic agents (such as pharmaceutical preparations, embolic materials), and support appropriate guidewire into the peripheral or coronary vasculature.


Feature

• Ultra low profile and pushability for navigation inside lesions and micro channels

• Hybrid braiding + Coil construction for guidewire support and crossing

• Dual-Layer radiopaque tapered tip for robustness and visibility

• Indicated for coronary and peripheral interventions


General specifications

Shaft coating

Hydrophilic coating

Braiding

Stainless steel - SUS

Inner layer

Polytetrafluoroethylene - PTFE

Radiopaque marker

0.7 mm gold marker located at 0.6 mm from the tip

Usable length

130 or 150 cm


specifications

ModelDistal OD(Fr/mm)Proximal OD(Fr/mm)Length(cm)Guide wire(in/mm)radiopaque marker
SMC-1.8-1301.8/0.62.7/0.91300.018/0.461
SMC-1.8-1501.8/0.62.7/0.91500.018/0.461
SMC-2.0-130S2.0/0.672.7/0.91300.018/0.461
SMC-2.0-130D2.0/0.672.7/0.91300.018/0.462
SMC-2.0-130T2.0/0.672.7/0.91300.018/0.463
SMC-2.0-150S2.0/0.672.7/0.91500.018/0.461
SMC-2.0-150D2.0/0.672.7/0.91500.018/0.462
SMC-2.0-150T2.0/0.672.7/0.91500.018/0.463
SMC-2.8-130S2.8/0.932.8/0.931300.021/0.531
SMC-2.8-130D2.8/0.932.8/0.931300.021/0.532
SMC-2.8-130T2.8/0.932.8/0.931300.021/0.533
SMC-2.8-150S2.8/0.932.8/0.931500.021/0.531
SMC-2.8-150D2.8/0.932.8/0.931500.021/0.532
SMC-2.8-150T2.8/0.932.8/0.931500.021/0.533
