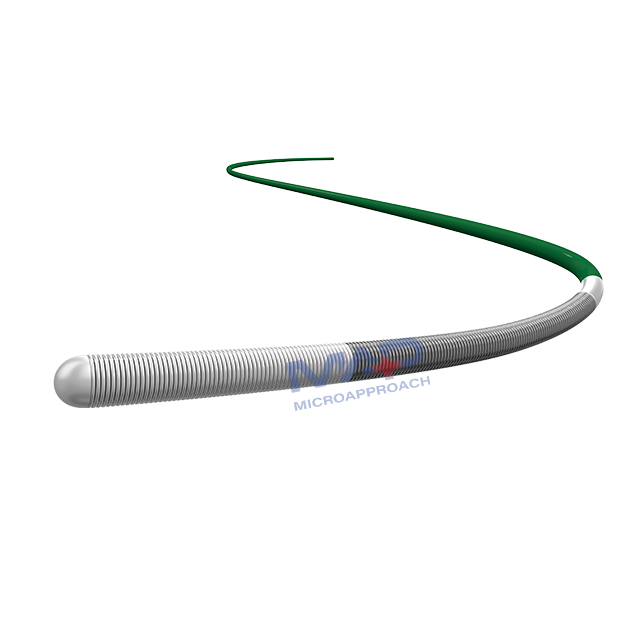

Product Description
Adaptation:
used to facilitate the placement of balloon dilatation catheters for percutaneous transluminal coronary angioplasty (PTCA) and/or percutaneous transluminal angioplasty (PTA).
Features:
Designed to cross simple or complex lesions with a soft, shapeable, atraumatic tip.
Enhanced visualization as gold coil in tip for accurate positioning.
Turn for turn torque control provides smooth maneuverability.
The directly jointed stainless steel and nitinol shaft provides a superior torque transmission.

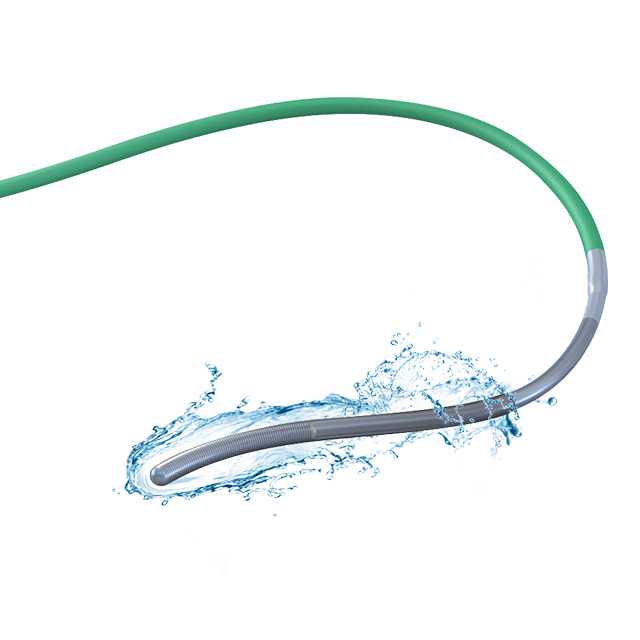

Hydrophilic coated distal part reduces friction.
Ordering Information
Catalog number | Diameter(inch/mm) | Length(cm) | Mark material | Tip |
GGW-14180NA-S | 0.014/0.36 | 180 | Gold | Soft |
GGW-14180NP-S | 180 | Platinum | Soft | |
GGW-14180NA-XS | 180 | Gold | Extra soft | |
GGW-14180NP-XS | 180 | Platinum | Extra soft |
Models Naming Composition：
XXX-XX-XXX X
Product Tip hardness
code S: soft
OD(inch) XS: extra soft
Length(cm)
