Endovascular procedures demand precise vascular access to ensure patient safety. Clinicians face a daily challenge when selecting the right tools. You must navigate delicate arterial and venous networks carefully. Ensuring safe, efficient entry remains a top priority in every catheterization lab. We rely heavily on specialized tubular devices to achieve these clinical goals. Both guide catheters and introducer sheaths serve as foundational elements today. However, they perform completely distinct, sequential roles during device delivery. You must understand how they interact to optimize patient outcomes.
This article clarifies the critical structural differences between these two indispensable tools. We explore complex sizing rules, compatibility requirements, and practical application strategies. You will gain actionable insights to improve your daily procurement accuracy. Ultimately, this knowledge helps refine your procedural planning and inventory management.

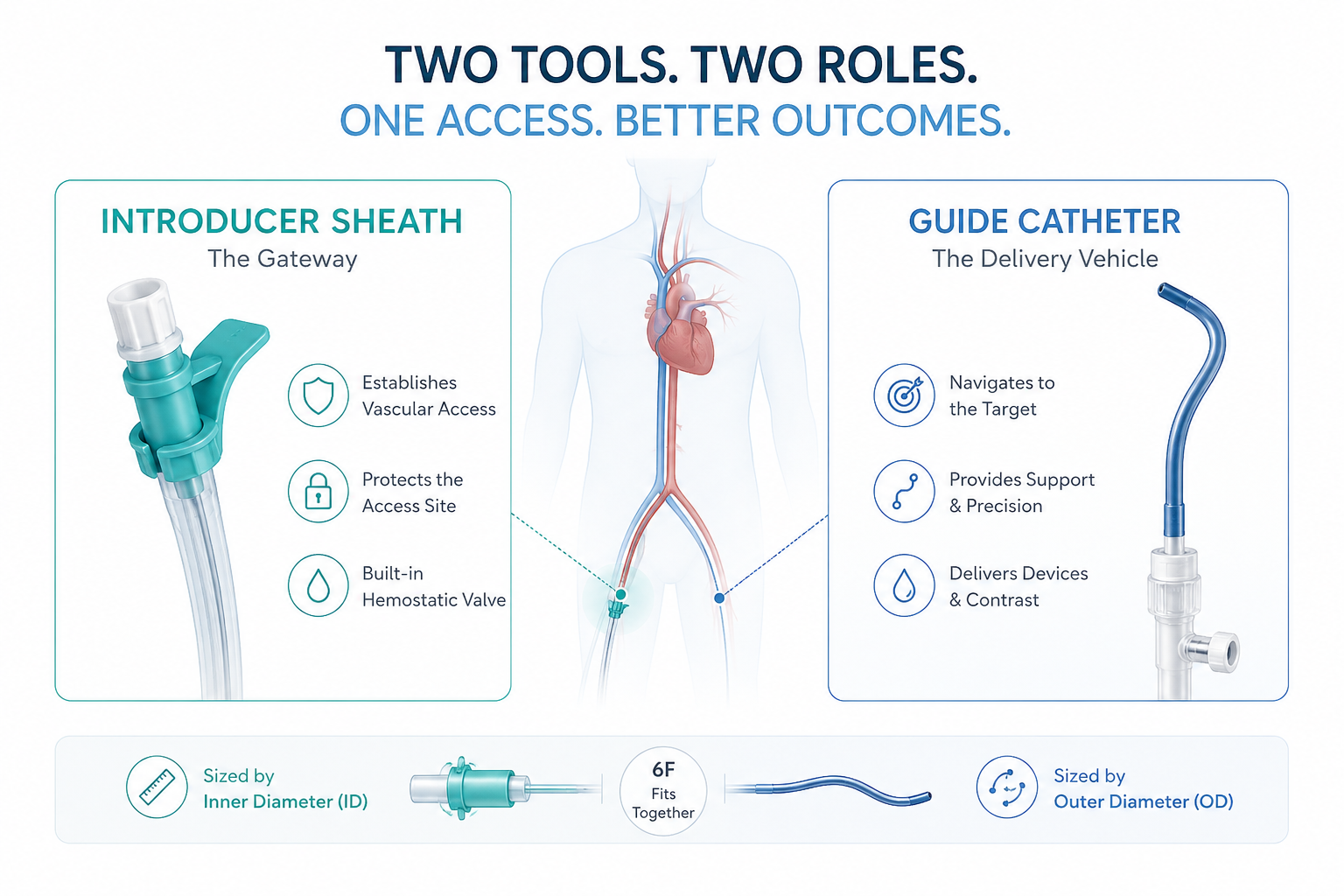

Primary Function: An introducer sheath acts as the foundational gateway protecting the access vessel, while a guide catheter navigates deep into the vasculature to deliver therapeutic devices to the target lesion.
Sizing Metric Discrepancy: Introducer sheaths are sized by their Inner Diameter (ID), whereas guide catheters are sized by their Outer Diameter (OD). A 6F guide catheter fits inside a 6F introducer sheath.
Valve Mechanics: Sheaths feature a hemostatic valve to prevent blood loss during multiple device exchanges; guide catheters generally require external Y-connectors (Tuohy-Borst) to manage hemostasis.
Clinical Evolution: The line between the two is blurring with the adoption of "sheathless" guide catheters in transradial interventions, designed to reduce total access site profile.
Let us break down the exact functions of each clinical tool. They operate as a synchronized system during complex interventions. We must look at them as two distinct halves of a single delivery pipeline. Understanding their fundamental purposes helps prevent preventable procedural errors.
Operators insert this access device directly into the target artery or vein. We typically use the standard Seldinger technique for safe, controlled entry. It stays completely stationary at your chosen access site throughout the case. Common clinical entry points include the femoral, radial, and pedal arteries.
This gateway protects the delicate vessel wall from severe mechanical trauma. Operators repeatedly insert and remove stiff wires, bulky balloons, and metal stents through it. A reliable introducer sheath acts as your primary anatomical safeguard. It prevents catastrophic vessel tearing during complex navigation.
We rely on these specific steps during standard Seldinger access:
Puncture the target vessel using a sharp, hollow access needle.
Advance a soft-tipped guidewire safely into the arterial lumen.
Remove the needle while holding the wire securely in place.
Slide the valved gateway device smoothly over the wire into the vessel.
Remove the wire and internal dilator to clear the central working lumen.
Operators advance this specialized tool directly through the primary access gateway. You push it forward to reach distant anatomical targets safely. Typical clinical destinations include the left coronary ostia or deep neurovascular beds. It delivers robust backup support and precise, one-to-one torqueability.
You need this stable conduit to deploy heavy interventional tools effectively. Physicians also use it for injecting radiopaque contrast media directly. This vital step allows direct visualization at the target lesion site.
What to watch out for: Always flush your delivery vehicle thoroughly before patient insertion. This simple habit prevents dangerous air embolisms from entering the systemic bloodstream.
Their physical engineering reflects their unique spatial roles inside the body. Manufacturers design them using different polymer blends, lengths, and hub structures. You must recognize these physical variations to troubleshoot equipment compatibility.
Length dictates how far a device can travel inside the patient. Flexibility determines how well it navigates tortuous vascular pathways.
Introducer Sheaths: They are typically much shorter. Standard access versions range from 10cm to 25cm. Long versions stretch up to 90cm for specific peripheral cases. Engineers design them to be highly kink-resistant at the skin entry point.
Guide Catheters: They measure significantly longer. Most standard models exceed 100cm in length. Engineers build them with distinct proximal and distal material zones. The proximal shaft remains stiff for pushability. The distal tip remains highly flexible for safe vessel engagement.
Blood loss management remains a critical safety priority in the cath lab. These two devices handle fluid management very differently.
Introducer Sheaths: They feature a built-in, integrated hemostatic valve at the proximal hub. This internal silicone slit automatically seals around inserted wires and tools. It provides immediate, passive hemostasis without manual adjustments.
Guide Catheters: They feature a completely open proximal hub. This open design requires the manual attachment of a rotating hemostatic valve (RHV). We commonly call this external add-on a Tuohy-Borst valve. It allows continuous fluid management and controlled device introduction.
Target vessels branch off the aorta at extreme, unpredictable angles. Device tip shapes must accommodate this anatomical reality.
Guide catheters come in highly specific, factory pre-shaped tips. Common examples include Judkins Left, Amplatz, and Extra Backup (EBU) curves. These specific shapes help the tip autonomously engage distinct anatomical structures. Sheaths are typically manufactured straight. They may feature simple, generalized curves if they function as long destination sheaths.
The medical industry uses the French (Fr) scale to measure tubular devices. One French equals precisely one-third of a millimeter (0.33mm). However, manufacturers apply this scale differently depending on the specific device category. This inconsistency often confuses new cath lab staff.
This sizing concept remains absolutely crucial for procurement teams and clinical compatibility. Ignoring it leads to dangerous access-site complications and wasted inventory.
Introducer Sheath Sizing: Manufacturers measure these devices by their Inner Diameter (ID). A 6 French (6F) model features an internal lumen large enough to accept a 6F device. Its actual outer profile measures significantly larger. Expect the outer diameter to be 1.5F to 2F larger than the stated size. This added wall thickness directly impacts the resulting arteriotomy size.
Guide Catheter Sizing: Manufacturers measure these devices entirely by their Outer Diameter (OD). A 6F guide catheter features an exact outer profile of 6F. This converts to approximately 2.0 millimeters.
This industry-standard sizing logic dictates a very simple, reliable rule. A 6F guide catheter passes seamlessly through a 6F introducer sheath. You do not need to size up your gateway to accommodate your delivery vehicle. They pair identically by stated number, despite measuring completely different physical surfaces.
Procurement teams must account for the actual outer profile of the access devices. Clinicians need this exact awareness to prevent severe access-site complications. Oversizing a gateway device often leads to painful radial artery spasm. In transfemoral cases, it increases the risk of severe post-procedural bleeding.
Sizing Comparison Chart
Stated French Size (Fr) | Guide Catheter OD (mm) | Sheath Inner ID (mm) | Estimated Sheath OD (mm) | Arteriotomy Impact |
|---|---|---|---|---|
5F | 1.67 mm | 1.67 mm | ~2.2 - 2.3 mm | Low trauma, suitable for small radial arteries. |
6F | 2.00 mm | 2.00 mm | ~2.5 - 2.7 mm | Standard PCI access, moderate site trauma. |
7F | 2.33 mm | 2.33 mm | ~2.9 - 3.1 mm | High trauma, often requires closure devices. |
Choosing the correct equipment setup defines the trajectory of the entire procedure. You must match the tool combination to the patient's specific anatomical demands.
Use them for routine diagnostic angiograms. They also work perfectly for standard percutaneous coronary interventions (PCI). These everyday procedures require quick, safe access without deep vascular support.
Your equipment evaluation criteria should focus on three primary factors:
Hydrophilic coating quality: Ensures smooth insertion and reduces debilitating artery spasms.
Kink resistance: Prevents the plastic from buckling at the crucial skin entry angle.
Valve durability: Maintains perfect hemostasis even after fifty device exchanges.
Complex peripheral, structural heart, or neurovascular interventions require advanced, specialized solutions. These difficult procedures demand combined access support and distal target navigation.
A long version acts as a powerful hybrid tool. It offers the robust structural support of a delivery vehicle. It combines this with the integrated hemostatic valve of a standard gateway. This eliminates the need for bulky external Y-connectors near the patient's head or leg.
Recent EuroIntervention studies heavily evaluate this modern technique for transradial coronary interventions. Medical device innovation constantly pushes for smaller, less invasive footprint options.
This approach eliminates the traditional access device entirely. Doing so reduces the overall puncture profile by one to two French sizes. It proves highly beneficial for patients with extremely small radial arteries. It prevents painful spasms and reduces recovery times. However, operators must utilize specific insertion techniques using elongated hydrophilic dilators.
Even perfectly designed medical tools carry inherent clinical risks. Your technique and equipment compatibility directly dictate the patient's overall safety profile.
Oversizing an access device relative to the patient's vessel creates significant, immediate risks. It stretches the delicate arterial wall beyond its natural elastic limits.
This aggressive stretching increases the likelihood of a massive post-procedural hematoma. It can also cause a dangerous pseudoaneurysm requiring surgical repair. In worst-case scenarios, vessel stretching leads to complete arterial occlusion and limb ischemia. Always measure the patient's artery via ultrasound before selecting your French size.
Tortuous, calcified anatomy presents major navigational challenges for any operator. Poor compatibility between your chosen devices exacerbates these inherent anatomical difficulties.
If the delivery vehicle's outer jacket rubs against the gateway's inner lumen, friction spikes. This tight mismatch can lead to dangerous device binding mid-procedure. Operators sometimes experience "watermelon seeding" during these moments. This happens when built-up friction causes the unintentional, violent ejection of the device.
Standardizing French sizes across guiding catheters, sheaths, and closure devices provides huge operational benefits. It dramatically reduces procedural delays during highly critical, time-sensitive clinical moments.
Proper alignment limits wasted, expired inventory sitting on the cath lab shelves. You should audit your stock monthly to ensure matching sizes exist for every clinical scenario. If you need dedicated support optimizing your procurement strategy or exploring custom solutions, feel free to contact us today.
Common Mistake: Never open a 7F closure device for a 6F procedure just because it was nearby. Mismatched closure tools fail to achieve hemostasis, leading to severe site bleeding.
Both devices function as essential, life-saving tubular conduits in modern interventional medicine. Their specific physical engineering corresponds directly to their unique spatial roles. The valved gateway device secures and protects the initial entry point. Meanwhile, the pre-shaped delivery vehicle bridges the anatomical distance directly to the target lesion.
Cath lab directors and hospital procurement teams should audit their current stock immediately. You must ensure seamless inner-to-outer diameter compatibility across your entire inventory. This prevents dangerous friction and device failure during critical procedures.
Prioritize high-quality hydrophilic options when performing transradial access to maximize patient comfort. Finally, consider adopting advanced sheathless guides for specific high-risk patient subsets. These deliberate choices will improve procedural efficiency, minimize site complications, and elevate your overall standard of care.
A: Yes, in certain peripheral and structural procedures. A "guiding sheath" (often called a destination sheath) performs both functions seamlessly. It provides a continuous, valved conduit directly from the skin to the target anatomy. This hybrid approach simplifies the procedure and reduces the number of required device exchanges.
A: It simply will not fit. The outer diameter of a standard 6F guide catheter measures approximately 2.0mm. This profile remains significantly larger than the inner diameter of a 5F sheath, which measures about 1.67mm. Attempting to force the device causes friction, equipment damage, and severe patient risk.
A: The stated French size indicates the internal lumen capacity, detailing exactly what the device can hold. The physical wall thickness of the plastic tubing adds 1.5F to 2F to the overall outer diameter. This final outer measurement dictates the actual size of the hole created in the patient's artery.
