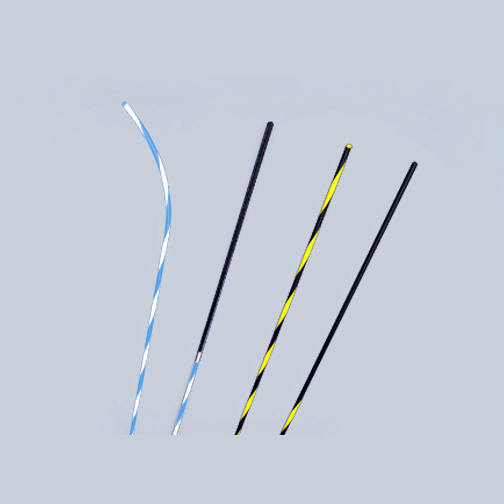

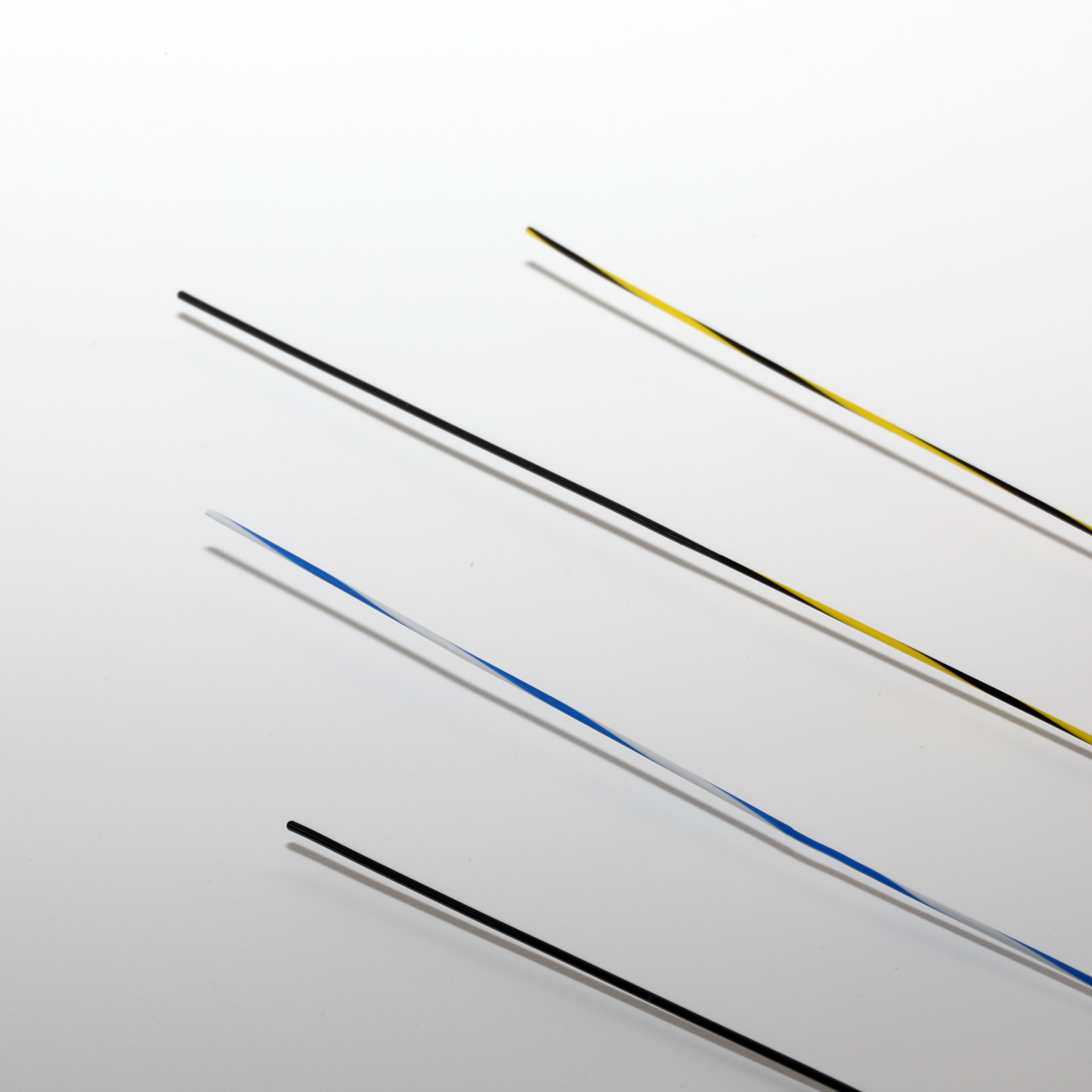

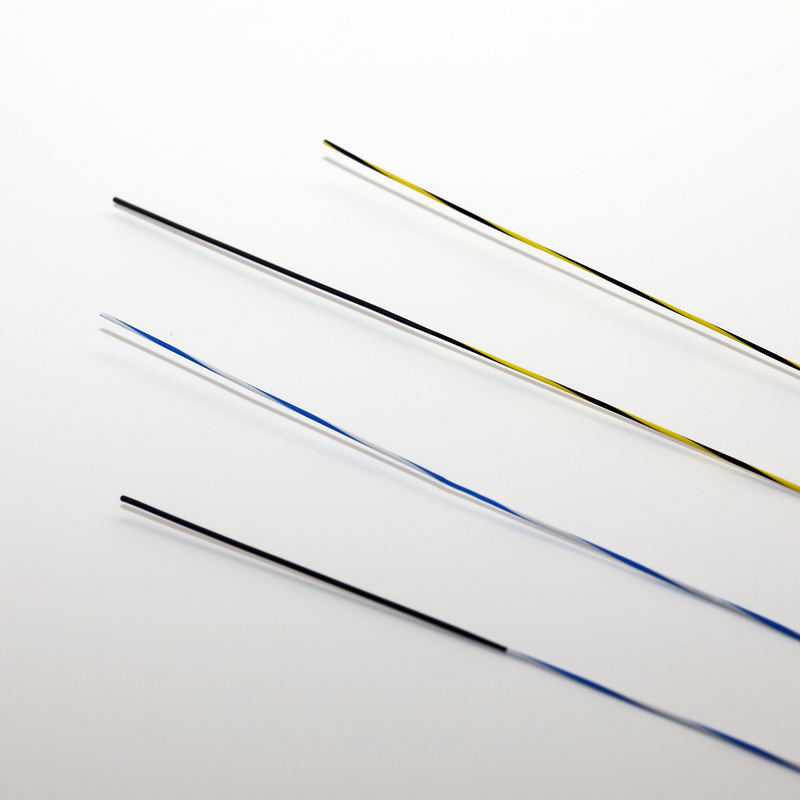

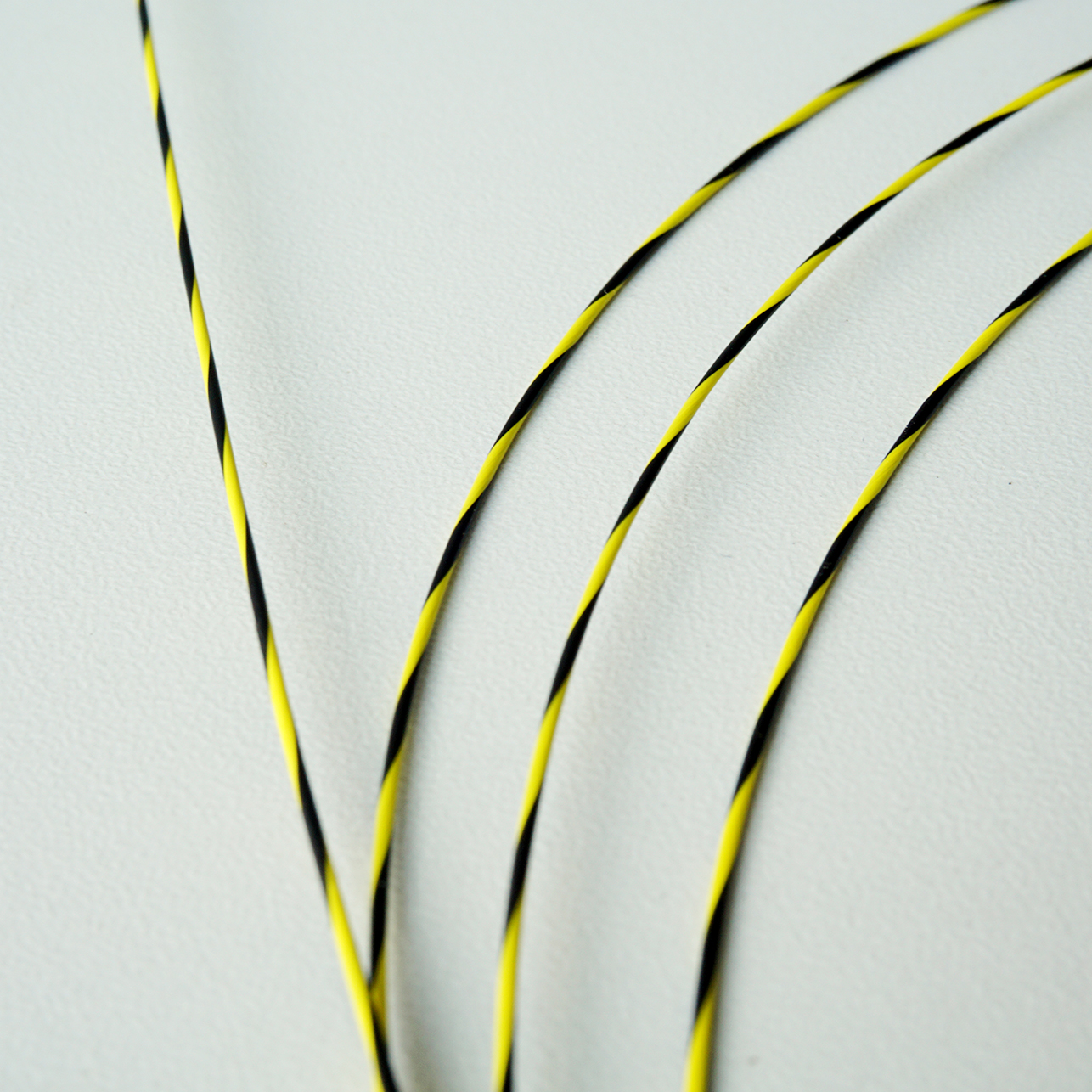

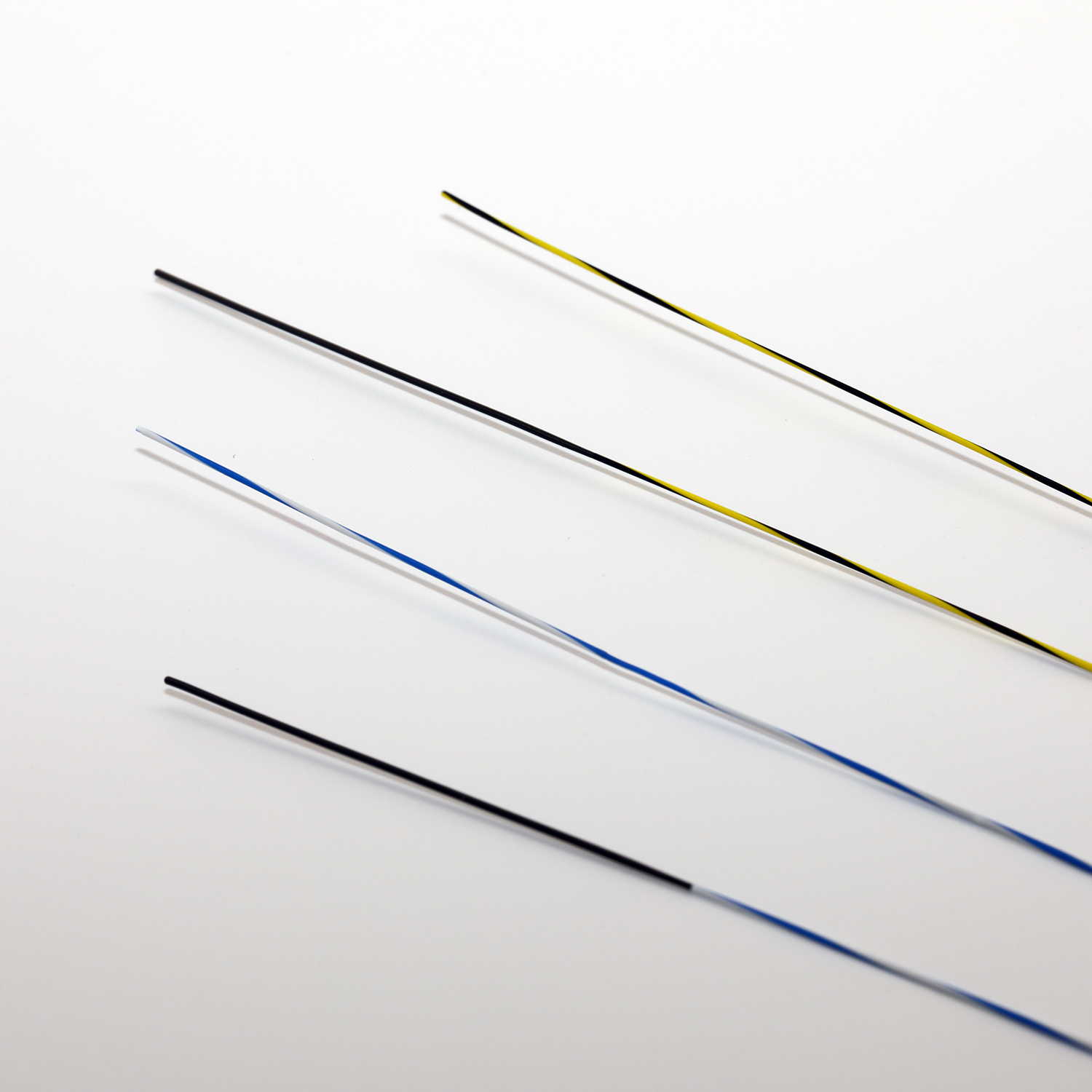

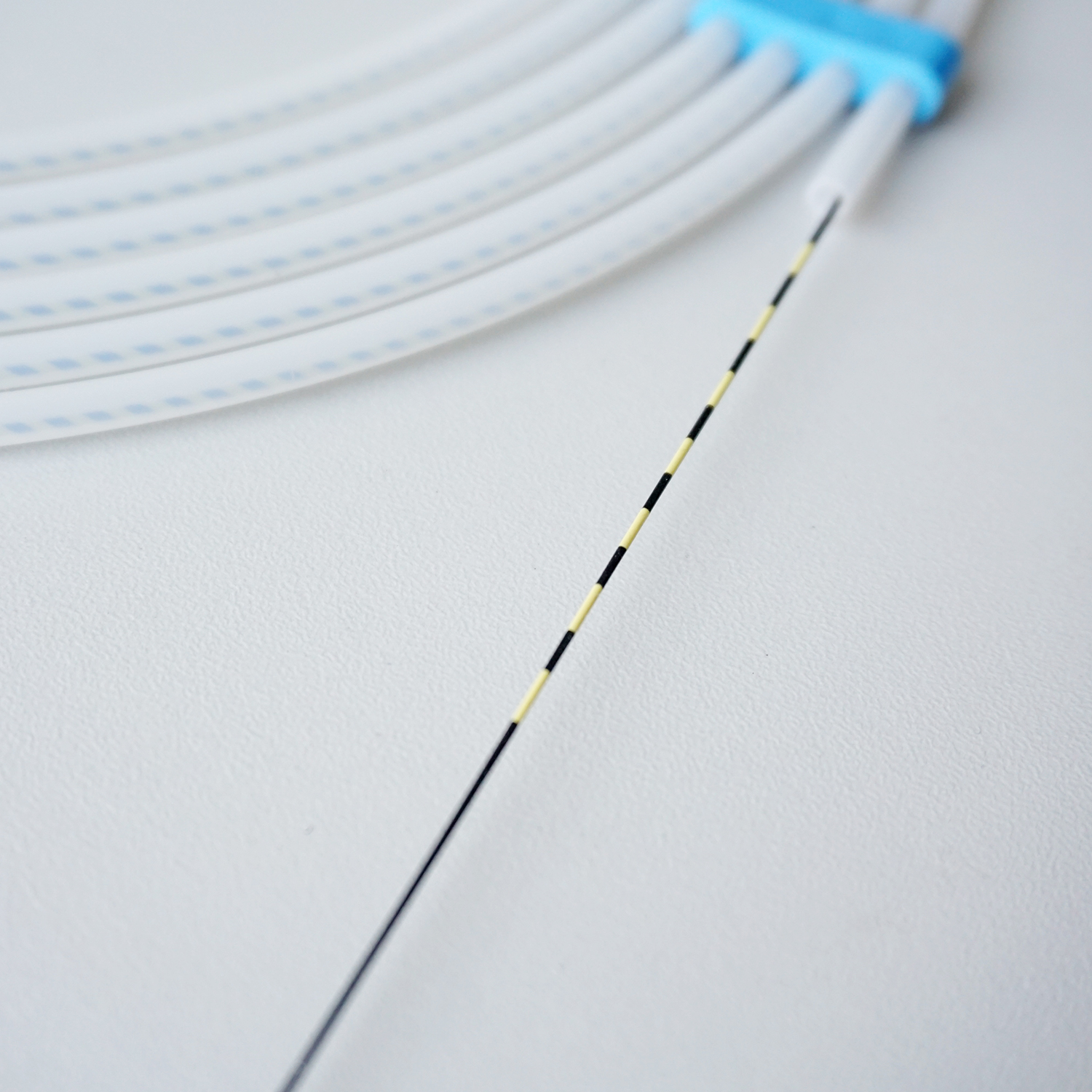

Yellow Surgical Therapeutic Zebra Guide Wire

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
Used to gain ureteral access, to establish a tract, and to assist in the placement, replacement, and exchange of medical devices during urological procedures. May also be used for catheter positioning and exchange in a tortuous or kinked ureter, traversing a stone en route to the kidney, or in cases demanding enhanced control and high radiopacity.
Availability:
Quantity:

Product Description

Application

Used to gain ureteral access, to establish a tract, and to assist in the placement, replacement, and exchange of medical devices during urological procedures. May also be used for catheter positioning and exchange in a tortuous or kinked ureter, traversing a stone en route to the kidney, or in cases demanding enhanced control and high radiopacity.


Features


  • Easy visual and track when doctor use.

  • It is designed for reliable access and reduced trauma.

  • Provide clear endoscopic visualization of wire movement.

  • Available in .018, .025, .032, .035 and .038 inch diameters and standard and stiff shafts.


specification

No.Catalog numberDiameter(inch/mm)Length(cm)ColorTip Type
1ZWO-25-050W0.025''/ 0.6450Blue&whitePTFE
2ZWO-25-080W80Blue&whitePTFE
3ZWO-25-150W150Blue&whitePTFE
4ZWO-28-050W0.028''/ 0.7150Blue&whitePTFE
5ZWO-28-080W80Blue&whitePTFE
6ZWO-28-150W150Blue&whitePTFE
7ZWO-32-050W0.032''/ 0.8150Blue&whitePTFE
8ZWO-32-080W80Blue&whitePTFE
9ZWO-32-150W150Blue&whitePTFE
10ZWO-35-050W0.035''/ 0.8950Blue&whitePTFE
11ZWO-35-080W80Blue&whitePTFE
12ZWO-35-150W150Blue&whitePTFE
13ZWO-38-050W0.038''/ 0.9750Blue&whitePTFE
14ZWO-38-080W80Blue&whitePTFE
15ZWO-38-150W150Blue&whitePTFE
16ZWO-25-050P0.025''/ 0.6450Blue&whitePU
17ZWO-25-080P80Blue&whitePU
18ZWO-25-150P150Blue&whitePU
19ZWO-28-050P0.028''/ 0.7150Blue&whitePU
20ZWO-28-080P80Blue&whitePU
21ZWO-28-150P150Blue&whitePU
22ZWO-32-050P0.032''/ 0.8150Blue&whitePU
23ZWO-32-080P80Blue&whitePU
24ZWO-32-150P150Blue&whitePU
25ZWO-35-050P0.035''/ 0.8950Blue&whitePU
26ZWO-35-080P80Blue&whitePU
27ZWO-35-150P150Blue&whitePU
28ZWO-38-050P0.038''/ 0.9750Blue&whitePU
29ZWO-38-080P80Blue&whitePU
30ZWO-38-150P150Blue&whitePU
31ZWB-25-150W0.025''/ 0.64150Yellow&blackPTFE
32ZWB-25-260W260Yellow&blackPTFE
33ZWB-25-450W450Yellow&blackPTFE
34ZWB-28-150W0.028''/ 0.71150Yellow&blackPTFE
35ZWB-28-260W260Yellow&blackPTFE
36ZWB-28-450W450Yellow&blackPTFE
37ZWB-32-150W0.032''/ 0.81150Yellow&blackPTFE
38ZWB-32-260W260Yellow&blackPTFE
39ZWB-32-450W450Yellow&blackPTFE
40ZWB-35-150W0.035''/ 0.89150Yellow&blackPTFE
41ZWB-35-260W260Yellow&blackPTFE
42ZWB-35-450W450Yellow&blackPTFE
43ZWB-38-150W0.025''/ 0.64150Yellow&blackPTFE
44ZWB-38-260W260Yellow&blackPTFE
45ZWB-38-450W450Yellow&blackPTFE
46ZWB-25-150P0.028''/ 0.71150Yellow&blackPU
47ZWB-25-260P260Yellow&blackPU
48ZWB-25-450P450Yellow&blackPU
49ZWB-28-150P0.028''/ 0.71150Yellow&blackPU
50ZWB-28-260P260Yellow&blackPU
51ZWB-28-450P450Yellow&blackPU
52ZWB-32-150P0.032''/ 0.81150Yellow&blackPU
53ZWB-32-260P260Yellow&blackPU
54ZWB-32-450P450Yellow&blackPU
55ZWB-35-150P0.035''/ 0.89150Yellow&blackPU
56ZWB-35-260P260Yellow&blackPU
57ZWB-35-450P450Yellow&blackPU
58ZWB-38-150P0.038''/ 0.97150Yellow&blackPU
59ZWB-38-260P260Yellow&blackPU
60ZWB-38-450P450Yellow&blackPU
